PTFE Skived Sheet

Discover Kaxite's PTFE Skived Sheet, a versatile solution for sealing and insulation in demanding industries. Crafted with pure PTFE, it offers superior chemical resistance, low friction, and durability for long-lasting performance. Ideal for engineers and manufacturers requiring reliable anti-stick and high-temperature applications, it enhances safety and efficiency. Experience the confidence of quality and precision—choose Kaxite for exceptional results today.
Rating: 5.0
(Rating Count: 1)
PTFE Skived Sheet – High-Quality Teflon Skived Film from China

China PTFE Skived Sheet – Precision Thin Film for Sealing & Insulation

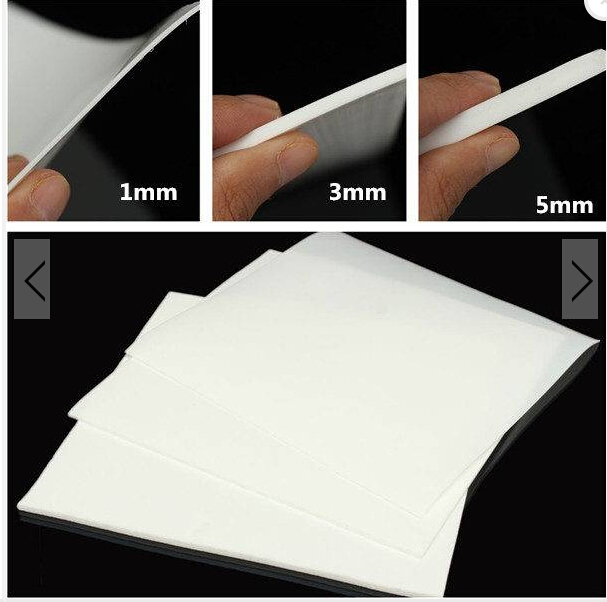

Kaxite is a leading PTFE skived sheet supplier in China, offering high‑quality PTFE skived film manufactured from 100% virgin PTFE resin. Our skived PTFE sheets are produced by precision skiving from molded billets, delivering thicknesses from 0.25 mm to 8 mm with excellent dimensional accuracy and surface finish.

With outstanding chemical resistance, a wide temperature range (-200°C to +260°C), and the lowest coefficient of friction among solid materials, our PTFE skived sheets are ideal for gaskets, seals, electrical insulation, and non‑stick applications. Backed by ISO 9001 certification and 25+ years of PTFE processing expertise, Kaxite provides custom PTFE skived sheets with fast delivery and full traceability.

📏
Thickness
0.25 – 8 mm
🌡️
Temp. Range
-200°C to +260°C
🧪
Chemical Resistance
Excellent (pH 0–14)
⚡
Dielectric Strength
High (≥ 480 V/mil)

Why Choose Kaxite PTFE Skived Sheet

🧬
Chemical Inertness
PTFE is resistant to virtually all chemicals, acids, and solvents – ideal for aggressive media handling.
🧊
Lowest Friction Coefficient
Self‑lubricating surface eliminates sticking and reduces wear in moving assemblies.
🔥
Extreme Temperature Stability
Maintains properties from cryogenic -200°C up to +260°C – suitable for harsh thermal environments.
⚡
Excellent Electrical Insulation
High dielectric strength and low dissipation factor – ideal for circuit boards and wire insulation.
📐
Precision Thickness Control
Skived process ensures tight tolerances and smooth surfaces for consistent gasket compression.
♻️
Non‑contaminating & FDA‑compliant
Pure PTFE is non‑toxic and meets FDA requirements for food and pharmaceutical applications.

Technical Specifications – PTFE Skived Sheet

Material 100% Virgin PTFE
Process Skiving from molded billet
Thickness Range 0.25 mm – 8 mm
Temperature Range -200°C to +260°C
Tensile Strength 2,500 – 4,000 PSI
Density 2.13 – 2.24 g/cm³
Dielectric Strength ≥ 480 V/mil
Grade Virgin (pure)

Custom thicknesses and sizes available: Kaxite offers OEM skived PTFE sheets in non‑standard dimensions. Contact our engineering team for custom solutions.

Compliance & Test Data

ASTM D792 – Density
Density range 2.13–2.24 g/cm³ ensures material purity and consistency.
ASTM D638 – Tensile Strength
Tensile strength 2,500–4,000 PSI confirms mechanical robustness for demanding applications.
ASTM D149 – Dielectric Strength
Dielectric strength ≥ 480 V/mil validates excellent electrical insulation performance.
FDA 21 CFR 177.1550
Virgin PTFE meets FDA requirements for food contact and pharmaceutical applications.

Full test reports and material certifications are available upon request. Kaxite maintains ISO 9001:2015 certified quality management.

Quality Assurance – Authoritative Manufacturing

As a trusted PTFE skived film manufacturer in China, Kaxite combines 25+ years of PTFE processing expertise with an ISO 9001:2015 certified quality system. Our skiving process is precisely controlled to deliver consistent thickness, smooth surfaces, and excellent dimensional stability. We provide full material certifications, test reports, and traceability for every batch, ensuring reliability for your critical applications.

  • ✔ ISO 9001:2015 – full traceability and quality control
  • ✔ CE compliant – meets European safety standards
  • ✔ FDA compliant – suitable for food contact applications
  • ✔ 100% virgin PTFE – no regrind or recycled material
  • ✔ Export to 40+ countries – trusted global reputation
🏅

Kaxite Sealing

China PTFE Skived Sheet Manufacturer

ISO 9001 25+ Years 40+ Countries
More About Us →

Typical Applications

🔌 Electrical & Electronics
Circuit board insulation, wire wrapping, capacitor films, and high‑voltage cable shielding.
🔧 Gaskets & Seals
Flange gaskets, pump seal liners, and valve packing – excellent conformability and chemical resistance.
🍷 Food & Pharmaceutical
Non‑stick liners, conveyor belts, and FDA‑compliant surfaces for sanitary processing.
🏭 Chemical & General Industry
Lining for reaction vessels, anti‑stick release films, and corrosion‑protective barriers.

For tailored thickness or size requirements, consult our technical specialists.

How to Order PTFE Skived Sheets

To receive a quick quotation and delivery schedule, provide the following details when you send inquiry.

① Thickness
0.25–8 mm (custom available)
② Sheet Size
Roll or cut sheet dimensions
③ Grade
Virgin (or filled grades on request)
④ Quantity
Number of sheets or rolls
⑤ Shipping Term
FOB Ningbo, CIF, or EXW

Frequently Asked Questions

Q: What is the difference between skived and molded PTFE sheet?
A: Skived sheets are peeled from a molded billet, offering much thinner and more uniform thickness (down to 0.25 mm) with a smooth surface, ideal for thin gaskets and films.
Q: What is the maximum continuous service temperature?
A: PTFE skived sheets can be used continuously up to 260°C (500°F), with short‑term peaks up to 300°C.
Q: Are skived PTFE sheets FDA compliant?
A: Yes, virgin PTFE is FDA 21 CFR 177.1550 compliant, making it suitable for food contact and pharmaceutical applications.
Q: Can you provide custom thicknesses or widths?
A: Absolutely. Kaxite offers custom thicknesses (up to 8 mm and beyond) and custom roll widths. Contact our engineering team for details.

Related PTFE Sheet Products

Explore the full range of compression sheet products for all your sealing needs.
