Expanded PTFE Sheet

Expanded PTFE Sheet

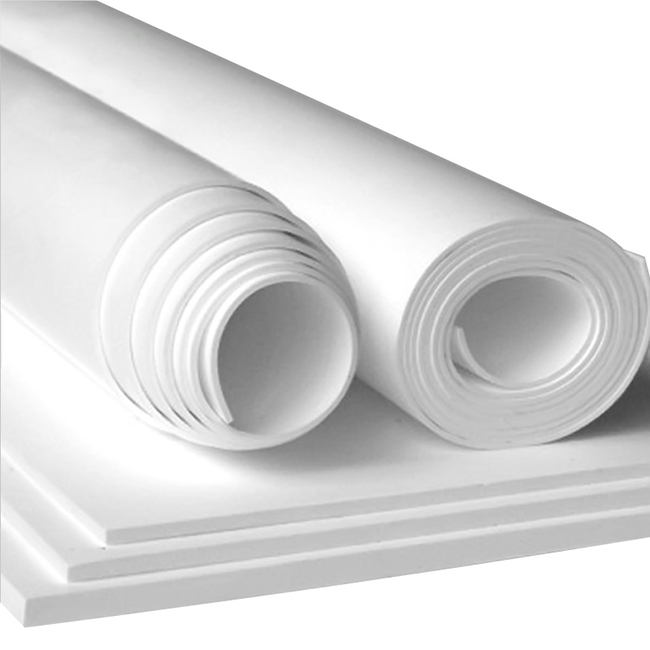

Kaxite's Expanded PTFE Sheet is a versatile sealing solution designed for demanding industrial applications. With exceptional chemical resistance and flexibility, this high-performance material ensures reliable sealing in extreme conditions like chemical processing or aerospace. Ideal for engineers and manufacturers, it enhances efficiency by preventing leaks and reducing maintenance. Its unique expanded structure offers superior durability compared to standard PTFE, delivering peace of mind and long-term reliability. Choose Kaxite for top-tier quality and performance.
Rating: 5.0
(Rating Count: 1)

China Expanded PTFE Sheet – High‑Performance Sealing Material

Expanded PTFE sheet from Kaxite delivers superior sealing performance with exceptional chemical resistance, flexibility, and temperature stability. Manufactured from 100% virgin PTFE using a proprietary biaxial orientation process, this flexible PTFE sheet offers uniform tensile strength in all directions, making it the ideal choice for critical sealing applications in chemical, pharmaceutical, food, and power generation industries.

✅ pH 0–14 ✅ -180°C to +260°C ✅ Non‑contaminating ✅ Virgin PTFE
🌡️
Temp. Range
-180°C to +260°C
🧪
pH Range
0 – 14 (universal)
📏
Thickness
1/32″ – 1/4″
📐
Sheet Size
60″ × 60″ (1524 mm)

Technical Specifications – Expanded PTFE Sheet

Material 100% Virgin Expanded PTFE
Process Biaxial orientation, laminated
Temperature Range -180°C to +260°C (continuous)
pH Resistance 0 – 14 (universal)
Thickness Options 1/32″, 1/16″, 3/32″, 1/8″, 3/16″, 1/4″
Standard Sheet Size 60″ × 60″ (1524 × 1524 mm)
Color White (standard) / Blue (optional)
Tensile Strength Equal in all directions (fibrillated microstructure)

Custom sizes and thicknesses available: Kaxite offers OEM expanded PTFE sheets in non‑standard dimensions. Contact our engineering team for custom solutions.

Compliance & Test Data

Chemical Resistance
PTFE is inert to all known chemicals except molten alkali metals and fluorine – verified by ASTM D543.
Temperature Performance
Continuous service from -180°C to +260°C; short‑term peaks up to 300°C – tested per ASTM D746.
Creep Relaxation & Sealability
Proprietary biaxial orientation minimizes creep and ensures long‑term sealing integrity – validated by internal test protocols.
Non‑Contaminating
Virgin PTFE meets FDA 21 CFR 177.1550 for food contact; suitable for pharmaceutical and semiconductor applications.

Full test reports and material certifications are available upon request. Kaxite maintains ISO 9001:2015 certified quality management.

Quality Assurance – Authoritative Manufacturing

As a leading expanded PTFE sheet supplier in China, Kaxite combines 25+ years of PTFE processing expertise with an ISO 9001:2015 certified quality system. Our proprietary biaxial orientation process produces a highly fibrillated microstructure with equal tensile strength in all directions, ensuring reliable sealing performance in the most demanding environments.

  • ✔ ISO 9001:2015 – full traceability and quality control
  • ✔ CE compliant – meets European safety standards
  • ✔ FDA 21 CFR 177.1550 – food‑grade suitability
  • ✔ 100% virgin PTFE – no regrind or recycled material
  • ✔ Export to 40+ countries – trusted global reputation
🏅

Kaxite Sealing

China PTFE Sheet Manufacturer

ISO 9001 25+ Years 40+ Countries
More About Us →

Industry Applications & Case Examples

🧪 Chemical Processing
Used as flange gaskets in aggressive acid and solvent service – proven in petrochemical refineries.
⚡ Power Generation
High‑temperature steam and gas turbine sealing – maintains integrity at 260°C.
🍷 Food & Beverage
FDA‑compliant gaskets for sanitary processing – non‑contaminating and easy to clean.
💊 Pharmaceutical
Pure PTFE sheet used in sterile environments – no particle shedding, excellent chemical resistance.

For more detailed application guidance, consult our technical specialists.

How to Order Expanded PTFE Sheets

To receive a quick quotation and delivery schedule, provide the following details when you send inquiry.

① Thickness
1/32″ – 1/4″ or custom
② Sheet Size
60″×60″ or custom dimensions
③ Color
White or Blue
④ Quantity
Sheets or rolls
⑤ Shipping Term
FOB Ningbo, CIF, or EXW

Frequently Asked Questions

Q: What is expanded PTFE sheet, and how does it differ from standard PTFE sheet?
A: Expanded PTFE is biaxially oriented to create a fibrous microstructure with equal tensile strength in all directions, offering better conformability, lower creep, and enhanced sealability compared to standard molded PTFE.
Q: What is the maximum continuous service temperature?
A: Expanded PTFE sheet can be used continuously at temperatures up to 260°C (500°F), with short‑term excursions up to 300°C.
Q: Is the sheet suitable for contact with food or pharmaceuticals?
A: Yes, virgin PTFE is FDA compliant (21 CFR 177.1550) and non‑toxic, making it safe for food processing and pharmaceutical applications.
Q: Can you provide custom thicknesses or larger sheet sizes?
A: Absolutely. Kaxite offers OEM custom thicknesses (up to 1/4″ and beyond) and larger sheet dimensions. Contact our engineering team for details.
