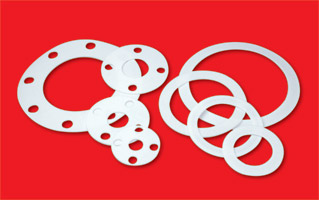

PTFE Gasket – precision-molded sealing solutions engineered from high-purity PTFE resin for unmatched chemical resistance, thermal stability, and non-stick performance. Manufactured in China by Kaxite, these gaskets deliver leak-proof sealing across chemical processing, pharmaceutical, and industrial applications where traditional materials fail.
PTFE gaskets are high-performance sealing components manufactured by compression molding PTFE (polytetrafluoroethylene) granular resin into precise shapes and dimensions. As a leading China PTFE gasket manufacturer, Kaxite produces these gaskets for critical sealing applications in chemical processing, pharmaceutical manufacturing, food processing, and semiconductor industries where chemical compatibility and purity are essential.
Compared to other sealing materials, PTFE offers universal chemical resistance (pH 0–14), an exceptionally wide temperature range (-200°C to +260°C), and the lowest coefficient of friction of any solid material. Our PTFE gaskets are available in raised face (RF) and flat face (FF) configurations, with thickness options from 1mm to 3mm, and can be customized to any size or shape per customer specifications.
Universal Chemical Resistance
pH 0–14 – resistant to virtually all acids, bases, solvents, and aggressive media
Wide Temperature Range
-200°C to +260°C – suitable for cryogenic and high-heat applications
Low Friction & Non-Stick
Coefficient of friction 0.05–0.10 – prevents adhesion and eases installation
Precision Molded
Compression molded for consistent density, dimensional accuracy, and smooth finish
FDA-Compliant Grades
Available in food-grade and pharmaceutical-grade formulations
Custom Configurations
Any size, shape, or thickness – RF, FF, or custom flange designs
| Property | PTFE (Kaxite) | Rubber / EPDM | Compressed Fibre | Graphite / Flexible Graphite |
|---|---|---|---|---|
| Chemical Resistance | Universal (pH 0–14) | Limited – media specific | Good – limited by binder | Excellent (pH 0–14) |
| Temperature Range | -200°C to +260°C | -30°C to +120°C | -40°C to +200°C | -240°C to +550°C |
| Friction Coefficient | 0.05–0.10 | 0.50–1.00 | 0.30–0.60 | 0.10–0.20 |
| Aging & Degradation | Does not age | Degrades over time | Moderate aging | Minimal |
| Non-Contaminating | Yes – no leachables | No – additives leach | No – binder leach | Yes |
| FDA Compliance | Yes | Limited | No | Limited |
| No. | Type | Standard (RF) | Type | Standard (FF) |
| 1 | RF 10A | Φ53×Φ18×3t | FF 10A | Φ90×Φ18×3t |
| 2 | RF 15A | Φ58×Φ22×3t | FF 15A | Φ95×Φ22×3t |
| 3 | RF 20A | Φ63×Φ28×3t | FF 20A | Φ100×Φ28×3t |
| 4 | RF 25A | Φ74×Φ35×3t | FF 25A | Φ125×Φ35×3t |
| 5 | RF 32A | Φ84×Φ43×3t | FF 32A | Φ135×Φ43×3t |
| 6 | RF 40A | Φ89×Φ49×3t | FF 40A | Φ140×Φ49×3t |
| 7 | RF 50A | Φ104×Φ61×3t | FF 50A | Φ155×Φ61×3t |
| 8 | RF 65A | Φ124×Φ77×3t | FF 65A | Φ175×Φ77×3t |
| 9 | RF 80A | Φ134×Φ90×3t | FF 80A | Φ185×Φ90×3t |
| 10 | RF 100A | Φ159×Φ115×3t | FF 100A | Φ210×Φ115×3t |
| 11 | RF 125A | Φ190×Φ141×3t | FF 125A | Φ250×Φ141×3t |
| 12 | RF 150A | Φ220×Φ167×3t | FF 150A | Φ280×Φ167×3t |
| 13 | RF 200A | Φ270×Φ218×3t | FF 200A | Φ330×Φ218×3t |
| 14 | RF 250A | Φ333×Φ270×3t | FF 250A | Φ400×Φ270×3t |
| 15 | RF 300A | Φ378×Φ321×3t | FF 300A | Φ445×Φ321×3t |
| 16 | RF 400A | Φ486×Φ410×3t | FF 400A | Φ560×Φ410×3t |
| 17 | RF 500A | Φ596×Φ513×3t | FF 500A | Φ675×Φ513×3t |
| 18 | RF 600A | Φ700×Φ615×3t | FF 600A | Φ795×Φ615×3t |
Custom sizes, thicknesses (1–5mm), and non-standard dimensions available upon request. Contact us for custom PTFE gasket quotations.
As an ISO 9001:2015 certified China PTFE gasket supplier, Kaxite ensures every gasket meets the highest quality standards:
Case Example: Pharmaceutical Plant Sealing Solution
A pharmaceutical manufacturer in the United States faced recurring sealing failures with rubber gaskets in their solvent recovery system. Kaxite supplied custom-molded PTFE gaskets in FDA-compliant grade. The result: zero sealing failures over 18 months of continuous operation, eliminating product contamination risks and reducing maintenance downtime by 85%.
Kaxite PTFE gaskets are trusted across a wide range of critical sealing applications:
For complementary sealing solutions, explore our PTFE gasket range, modified PTFE gaskets, or expanded PTFE gaskets for specific applications.
As a premier China PTFE gasket factory, Kaxite combines advanced compression molding capabilities with deep PTFE material expertise. Our ISO-certified manufacturing facility produces high-quality PTFE gaskets with consistent dimensions and performance. We offer competitive wholesale pricing, low MOQ, and responsive engineering support. With exports to over 40 countries and a commitment to quality and delivery, Kaxite is the reliable partner for your gasket requirements.
Kaxite provides seamless procurement of PTFE gaskets wholesale with flexible and transparent processes:
Need PTFE gaskets for your next project? Send your inquiry and our team will respond within 24 hours with pricing and availability.
★ Trusted China PTFE Gasket Manufacturer – Request Your Quote
Contact Kaxite for factory-direct wholesale pricing, custom sizes, and expert technical support.
