Seinseal Insulation Gasket Kits – advanced flange sealing solutions featuring a unique quad ring design that delivers near-zero "m" and "y" factors, ensuring controlled pressure seals without excessive bolt loads. Engineered with a rectangular sealing element encapsulated in a specially designed groove, these kits provide exceptional sealing performance across a wide range of operating conditions. As a leading China Seinseal gasket kit manufacturer, Kaxite offers sealing elements in Nitrile, EPDM, Viton, and PTFE to match your specific media, temperature, and pressure requirements. Ideal for oil and gas pipelines, refineries, chemical plants, and power generation facilities, these kits deliver reliable isolation and leak-free performance.

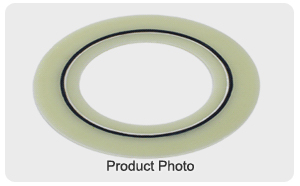

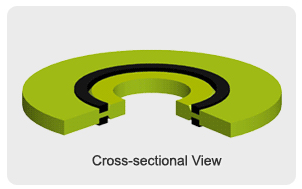

Seinseal Insulation Gasket Kits represent one of the most effective methods for sealing and insulating all types of flanges. The design features a rectangular sealing element, or "quad ring," encapsulated in a specially engineered groove within the retainer. This unique configuration provides near-zero "m" (gasket factor) and "y" (minimum seating stress) values, allowing controlled pressure seals to be achieved without the need for excessive bolt loads – reducing the risk of flange damage and simplifying installation. As a trusted China Seinseal insulation gasket kit supplier, Kaxite manufactures these kits with retainers in phenolic or epoxy glass materials and sealing elements available in Nitrile (NBR), EPDM, Viton (FKM), and PTFE, ensuring compatibility with a broad spectrum of media including hydrocarbons, acids, steam, and aggressive chemicals.
The Seinseal design is particularly valued in applications where thermal cycling, vibration, or flange movement might compromise conventional gaskets. The quad ring's resilience maintains sealing contact under varying conditions, while the insulating retainer provides electrical isolation to prevent galvanic corrosion in cathodic protection systems. These kits are widely used in oil and gas pipelines, refineries, chemical processing plants, and power generation facilities, delivering long service life and reduced maintenance costs.
Achieve controlled pressure seals without excessive bolt loads – reduces flange stress and simplifies installation.
Rectangular cross-section design encapsulated in a groove – maintains sealing integrity under thermal cycling and vibration.
Nitrile, EPDM, Viton, or PTFE – select the optimal elastomer for your media, temperature, and pressure conditions.
Phenolic or epoxy glass retainers provide electrical isolation – ideal for cathodic protection and stray current control.
Available for flat face, raised face, and RTJ flanges – adaptable to ASME, DIN, JIS, and API standards.
Extended service life reduces downtime and replacement frequency – proven in demanding industrial environments.
| Seal Material | Temperature Range (°F) | Temperature Range (°C) | Key Characteristics |
|---|---|---|---|
| Nitrile (NBR) | -65 to +250°F | -54 to +121°C | Excellent oil, fuel, and hydrocarbon resistance. Cost-effective general-purpose seal. |
| Viton (FKM) | -20 to +350°F | -29 to +177°C | Superior chemical resistance to acids, fuels, and high-temperature fluids. Ideal for aggressive media. |
| PTFE (Teflon) | -292 to +450°F | -180 to +232°C | Universal chemical resistance (pH 0–14). Non-stick, low friction. Best for corrosive media. |
| Neoprene | -40 to +248°F | -40 to +120°C | Good oil, weathering, and ozone resistance. Versatile general-purpose seal. |
| EPDM | -65 to +248°F | -54 to +120°C | Excellent resistance to water, steam, and brake fluids. Suitable for outdoor and weather-exposed applications. |
Both retainer and sealing element temperature limits must be considered together. Refer to the retainer material specifications for combined operating limits. Contact Kaxite engineering for material selection guidance.
| Property | Plain Phenolic | Silicone Glass G-7 | Epoxy Glass G-10 | Epoxy Glass G-11 |
|---|---|---|---|---|
| Dielectric (V/mil) | 500 | 350-400 | 550 | 550 |
| Compressive (psi) | 25,000 | 40,000 | 50,000 | 50,000+ |
| Water Absorption (%) | 1.6 | 0.07 | 0.10 | 0.10 |
| Insulation Resistance (Meg Ohms) | 40,000 | 2,500 | 200,000 | 200,000 |
| Flexural (psi) | 22,500 | 27,000 | 45,000 | 43,000 |
| Temp Range (°C) | -54 to +104 | -180 to +232 | -180 to +138 | -180 to +177 |
* G-7 material is not recommended for hydrocarbon service. Always verify combined retainer and seal element temperature limits for your specific operating conditions.
As an ISO 9001:2015 certified China Seinseal insulation gasket kit manufacturer, Kaxite ensures every kit meets the highest quality standards:
Case Example: Refinery Steam System Upgrade
A major petrochemical refinery in Saudi Arabia experienced chronic steam leaks at flange connections in their high-temperature steam distribution system. Conventional gaskets required frequent re-torquing and replacement, causing unplanned shutdowns. Kaxite supplied Seinseal Insulation Gasket Kits with EPDM sealing elements and epoxy glass retainers for 600# raised face flanges. The quad ring design maintained a leak-free seal despite thermal cycling from ambient to 200°C. After 24 months of service, zero leaks were reported, reducing maintenance costs by an estimated $95,000 annually and eliminating unplanned downtime.
For standard flange isolation, explore our Neoprene Faced Phenolic Gaskets and Flange Insulation Gasket Kits.
As a leading China Seinseal insulation gasket kit manufacturer, Kaxite combines advanced engineering with manufacturing excellence:
Kaxite provides seamless procurement of Seinseal insulation gasket kits wholesale with flexible and transparent terms:
Need Seinseal Insulation Gasket Kits for your project? Send your inquiry and our team will respond within 24 hours with pricing and availability.
