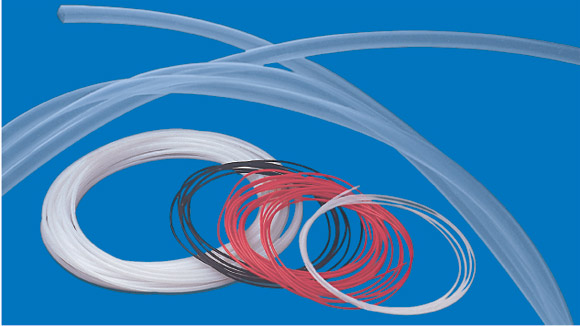

FEP Tubing

Experience superior performance with Kaxite FEP Tubing, crafted from high-quality fluoropolymer for exceptional chemical resistance, flexibility, and clarity. Ideal for laboratories, medical, and industrial applications, it ensures reliable, leak-free fluid transfer. Stand out with Kaxite's precision engineering and durability, offering peace of mind and efficiency. Trust Kaxite FEP Tubing for unparalleled quality and performance in every use.

Send Inquiry

Product Description

[ Features ]

FEP also named F46, it manfactured by ram extruding method with FEP resin adding additive (or without additive) has realiable. properties of resistant from high or low temperature, chemical corruption electric insulation, non-stick.

[ Specifications ]

Unit mm

outside diameter	Tolerance	wall thickness	Tolerance	outside diameter	Tolerance	wall thickness	Tolerance
1	0.08	0.2	0.05	16	0.20	1.0	0.15
2	0.08	0.2	0.05	18	0.20	1.0	0.15
3	0.10	0.4	0.06	20	0.40	1.0	0.15
4	0.10	0.4	0.06	25	0.40	1.5	0.20
5	0.10	0.5	0.10	32	0.50	1.5	0.20
6	0.10	0.5	0.10	36	0.50	2.0	0.20
8	0.20	0.5	0.10	40	0.50	2.0	0.20
10	0.20	1.0	0.15	50	0.50	2.0	0.20
12	0.20	1.0	0.15	65	0.80	3.0	0.30
14	0.20	1.0	0.15	80	1.00	3.0	0.40

[ Main properties ]

Properties	Unit	Result
Properties	Unit	electricity gas	be current
Tensile strength	Mpa	14	14
Ultimate Elongation	%	175	175
Dialectric Strength 0.2mm wall 0.4mm thickness 0.5mm	MV/m	30 25 24	-- -- --

[ Applications ]

Can be long term used under the temperature from -80

- 200

.
YCSG-1 tube mainly used in various electric cable, electric wire, protecting cover, eletric elements and ray tube.
YCSG-2 tube mainly used in bad working coudition, for example, inner liner pipes for corrosive fluids and gas, heat exchange machine tube and fluids meter tube.

Hot Tags: FEP Tubing Manufacturer, FEP Tubing Supplier, Custom FEP Tubing
